Abstract
We present TOOLCAD, a framework that augments Large Language Models (LLMs) with programmatic, CAD-specific tools and trains them end-to-end via reinforcement learning for text-to-CAD generation. By letting the model invoke operations such as sketch constraint solving, feature assembly, and parametric history editing, TOOLCAD produces editable, manufacturing-aware B-Rep models directly from natural-language descriptions. Reinforcement learning on tool-aware trajectories substantially improves geometric validity, editability, and user-intent alignment over prior prompt-only or end-to-end SFT baselines, while remaining compatible with any open- or closed-source LLM backbone.
Method · At a Glance

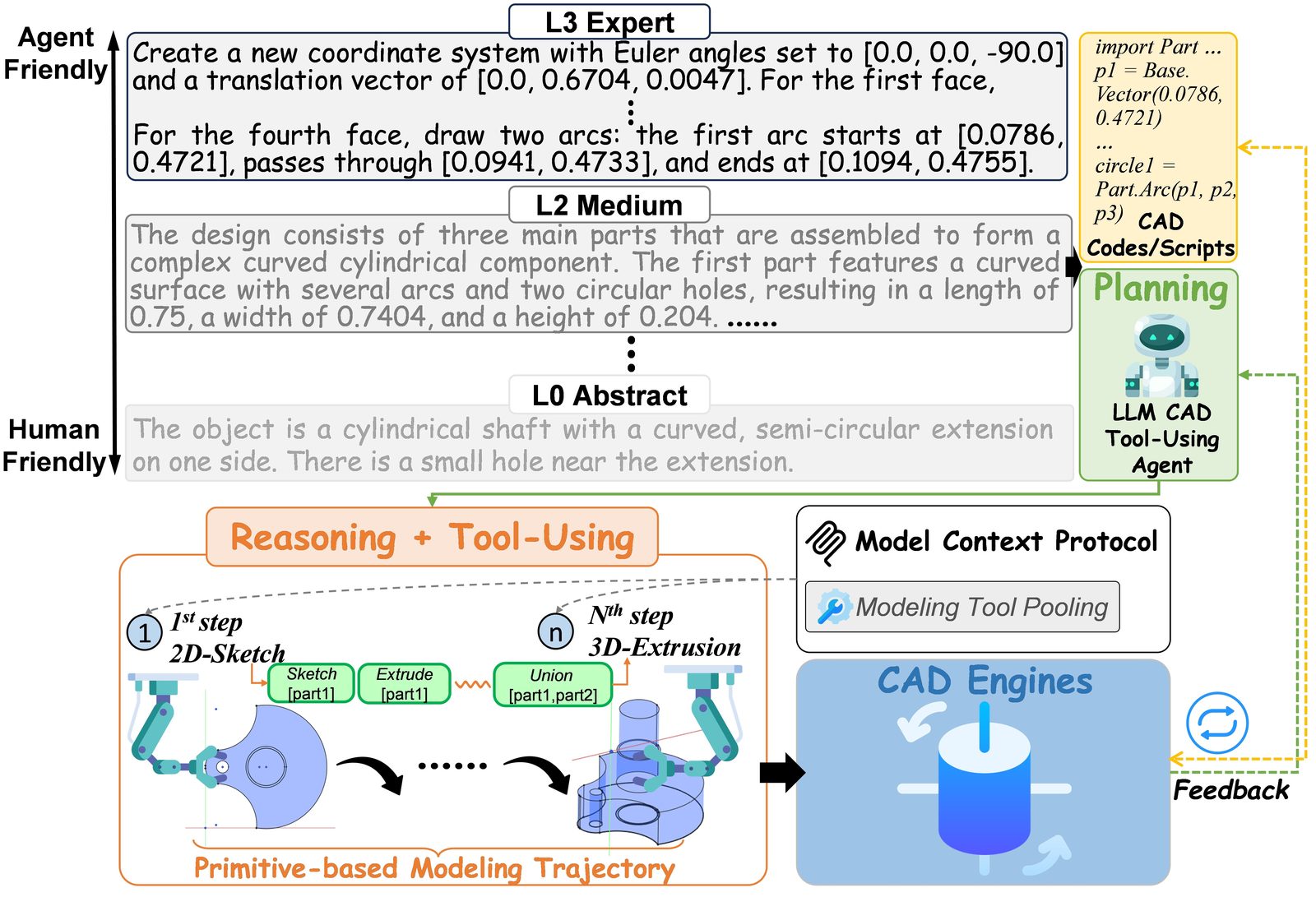

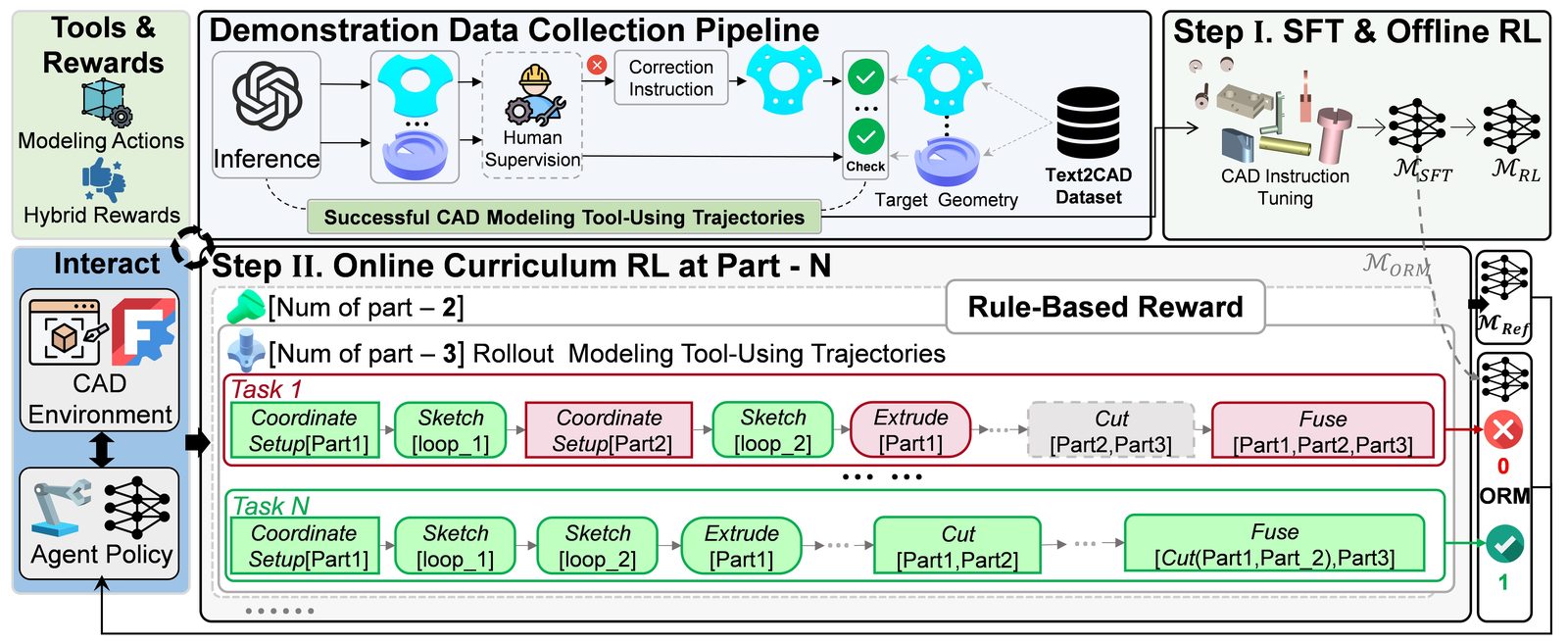

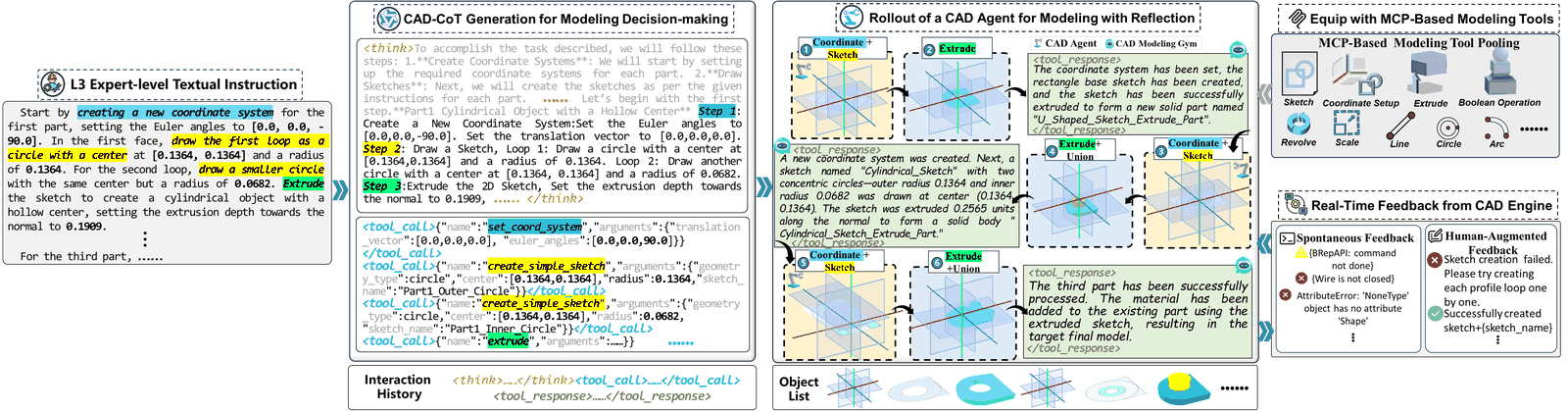

A text prompt enters an LLM agent that interacts with a curated suite of CAD tools (sketching, extruding, filleting, dimensioning, exporting). Each rollout produces a (reasoning, tool-call, B-Rep) trajectory. We optimize the policy with a tool-conditioned RL objective that rewards geometric validity, parametric editability, and semantic fidelity to the prompt.
- Tool-using LLM agent that emits structured CAD operations.
- Reinforcement learning with geometric + editability rewards.
- Text-to-B-Rep outputs that remain editable in standard CAD tools.
Highlights
- First RL framework that teaches LLMs to call CAD tools for text-to-CAD generation.
- Generates editable B-Rep models, not just meshes or point clouds.
- Substantial gains in geometric validity, parametric editability, and intent alignment.
- Plug-and-play with various LLM backbones (open- and closed-source).
Results · Preview
